Capacity options
20 / 30 kWhLXL9
Home Energy Storage Battery
Configuration LXL9-20
- Capacity
- 20 kWh
- Nominal voltage
- 51.2 V
What Sets It Apart.
High-capacity, safe, and scalable home energy storage.
Nominal voltage
51.2 VBattery chemistry
LiFePO4Lithium Iron Phosphate, safer & longer cycle lifeInstallation
Vertical, movable castersFreely movable, support multi-units parallel for capacity expansionSpecifications
Selected configurationLXL9-20
| Specification | LXL9-20 | LXL9-30 |
|---|---|---|
| Model | LXL9-20 | LXL9-30 |
| Rated energy | 20 kWh | 30 kWh |
| Nominal voltage | 51.2 V | 51.2 V |
| Voltage range | 46–58.4 V | 46–58.4 V |
| Communicationtype | RS232/RS485/CAN/Bluetooth/Wi-fi | RS232/RS485/CAN/Bluetooth/Wi-fi |
| Cell capacity | 400 Ah | 600 Ah |
| Size | 1050*605*355 mm | 1050*605*355 mm |
| Weight | 216 KG | 242 KG |
- Model
- LXL9-20
- Rated energy
- 20 kWh
- Nominal voltage
- 51.2 V
- Voltage range
- 46–58.4 V
- Communicationtype
- RS232/RS485/CAN/Bluetooth/Wi-fi
- Cell capacity
- 400 Ah
- Size
- 1050*605*355 mm
- Weight
- 216 KG
Built for residential energy needs.

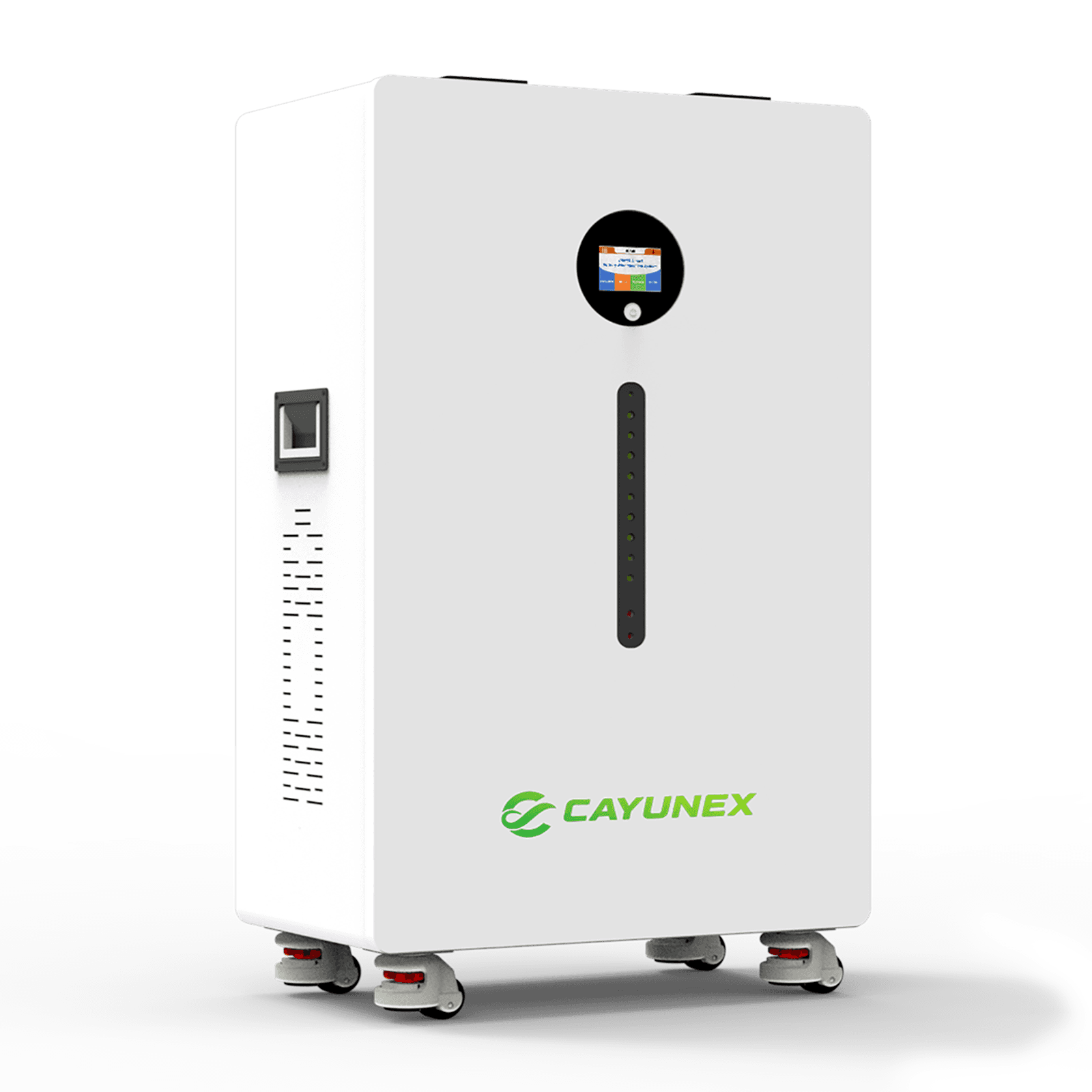

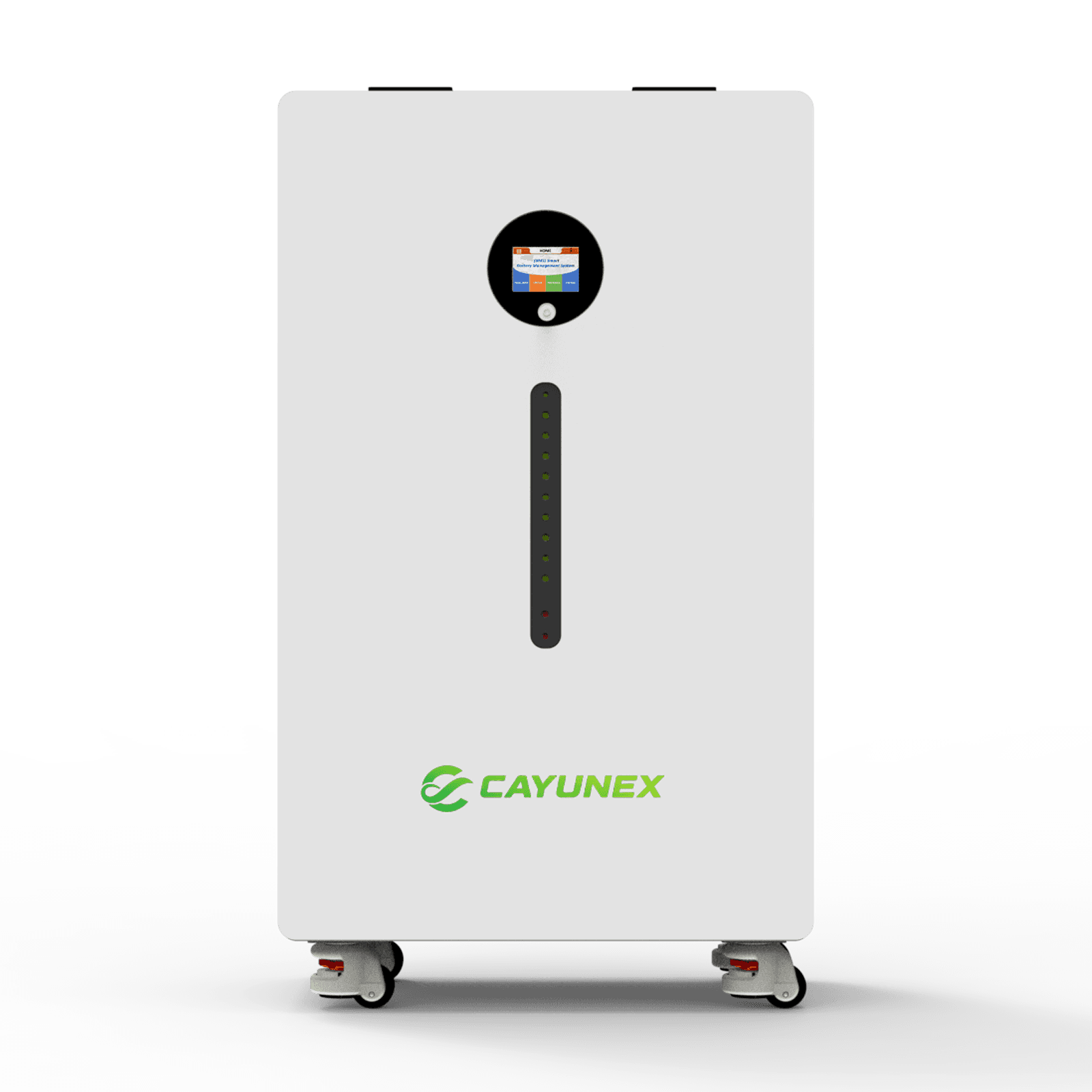

The LXL9 is a floor-standing residential energy storage battery designed for home solar and residential energy storage applications.
Built around a 51.2 V LiFePO4 battery platform, the LXL9 is available in 20 kWh and 30 kWh configurations to support different household energy requirements.
Variant-specific technical information is presented separately so homeowners, installers, and distributors can review the configuration that best fits each project.
For project planning, system compatibility, installation requirements, and product documentation, contact CAYUNEX Energy.
